Drying Machine

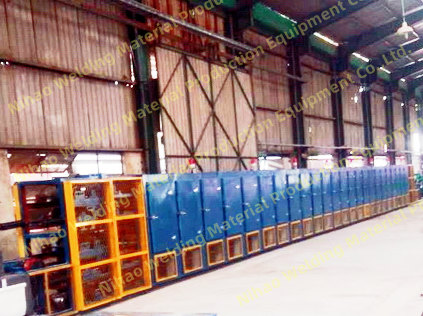

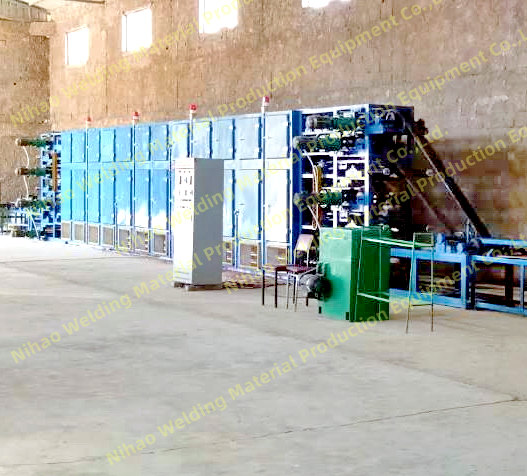

automatic chain-type drying furnace
automatic chain-type drying furnace
automatic chain-type drying furnace, as the special production equipment for welding electrodes, can be used in baking of welding rods.
Specifications and Parameters:
No. | Name | SHG-3A | SHG-5A | SHG-7A | |
1 | Drying Mode | Far-infrared (electrical), natural gas, diesel, coal | |||
2 | Applicable Scope | 2.5-3.2mm | 2.5-5.0mm | 2.5-5.0mm | |
3 | Length | 250-400mm | 250-450mm | 250-500mm | |
4 | Convoying Mode | Chain type | |||
5 | Operating Speed | 1.2-2.8M/min | 2.5-5M/min | 2.5-5M/min | |
6 | Effective Drying Length | 24M | 24M | 15M | |
7 | Motor Power | 4kw | 7kw | 8.8kw | |
8 | Cooling Power | 1.08kw | 1.08kw | 0.675kw | |
9 | Far-infrared (Electrical) Drying Power | 134.4kw | 172.8kw | 168kw | |
10 | Max. Drying Temperature | 230 Degrees Celsius | |||
11 | Heating-up Time | Not less than 30min | |||
12 | Alarm Mode | Lever-type alarming light display, quick sound alarming | |||
13 | Cooling Mode | Natural + forced | |||
